Diode laser machine

June 3, 2019

What is diode laser marking, cutting, and engraving?

Laser marking and cutting machine: An entry-level smart laser technology with high peak power and high pulse width. This is a solid-state diode pumped laser with 25,000 hours of MTTF life. A novelty in the diode industry; economic yet powerful it boasts of uncompromising quality with unmatched European technology.

The laser has great durability and is ideal for marking on plastic and metal. The most benefited clients would be those in the implant industry and those with small production requirements. It takes up very little space.

The machine is small enough to fit inside a suitcase and is good to go once hooked on to a laptop. The complete system is covered with a 1-year warranty. The key features of these machines are as under:

  • +25,000 hours of expected MTTF lifetime of the laser source.
  • Compact rugged air-cooled structural design.
  • Up to 500mm Z-axis work station movement.
  • The best ergonomics with 3-way work station.
  • Highest marking quality beam diameter <32 microns.
  • Red pointer for mark preview.
  • Optional suction system for high life.
  • Mark on the fly, safety curtain, automation integration options, x-y cross-table extends infinite possibilities.
  • High speed, versatile & user-friendly marking machine.
  • European components provide additional reliability.
  • Digitally editable parameters ensure hassle-free marking experience.
  • 1-year warranty on complete laser.
  • Original windows operating system & Markomark® software license.
  • Highly qualified and experienced technical support team.

Zero consumables & negligible maintenance ensures a low cost of ownership.

Special applications:

Our Diode Laser Markers are indispensable in industries like surgical, locks, implants, jewelry, plastics, etc. and are specifically needed when marking requirements are small.

Technical specifications:

Parameters4 watt10 watt15 watt
Laser TypeDPSSDPSSDPSS
Wavelength1064nm1064nm1064nm
Average power (Watt)4 watt10 watt15 watt
Repetition rate (Q switch)5 khz – 25 khz10 khz – 100 khz15 khz – 100 khz
Pulse width60 to 80 ns70 to 50 ns10 to 200 ns
PolarisationLinearLinearLinear
Beam Quality (M²)<1.2<1.3<1.2
Aiming Diode @ 630 nm (Class 2M)Integrated RED Laser Diode
Cooling systemAir cooled with thermostatic fans
Laser Source ClassClass IVClass IVClass IV
Power240 V240 V240 V
Input Current10 Amp10 Amp25 Amp
Operation Temp.20° to 30°20° to 30°20° to 30°
Humidity95% RH, non condensing
Suspended Matter>3mg/M³>3mg/M³>3mg/M³

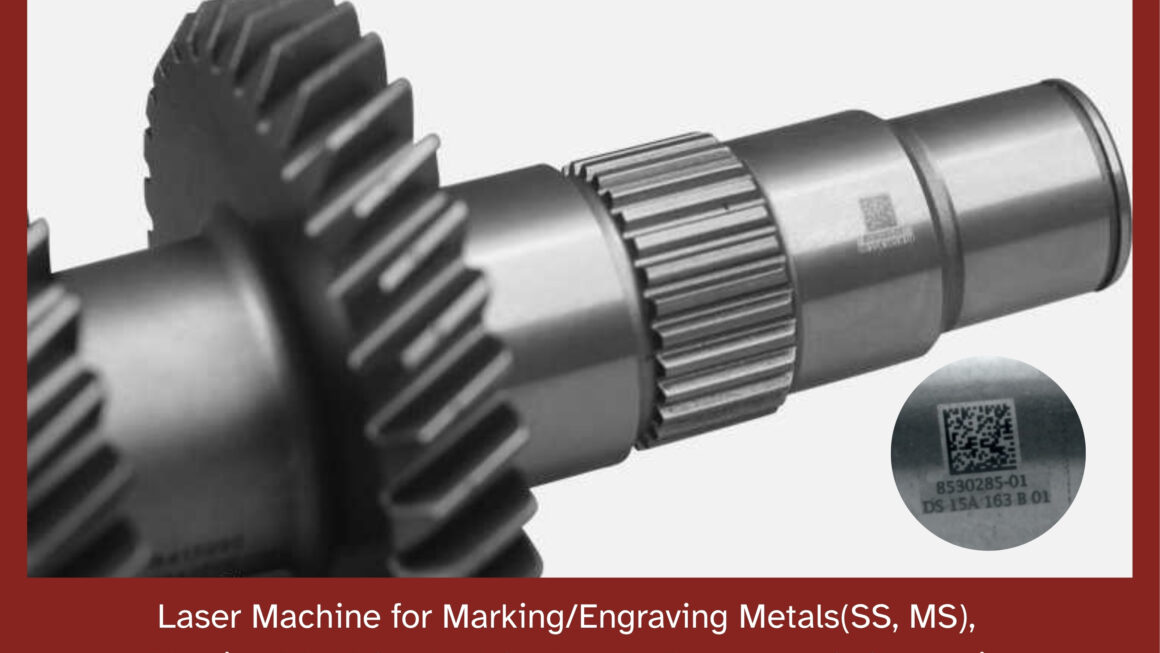

Samples at a glance

Laser marking on visiting card holder
